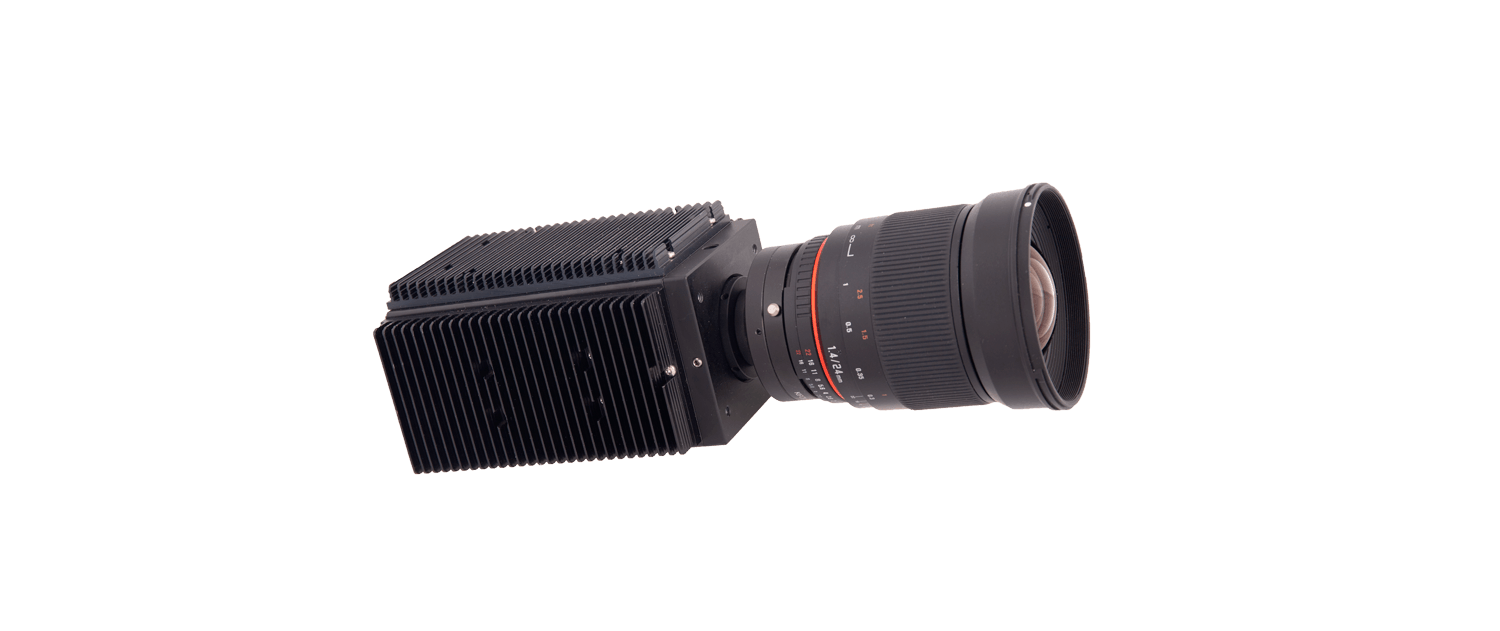

Procemex Crystal Smart Camera 12 Mpix 700 MHz B&W
High definition, fast and extremely light sensitive camera suitable for inspecting and filming all pulp and paper grades and printed products with 4096×3072 pixel resolution.
Procemex Crystal ProClean Pinhole Camera with 700 MHz data processing features 12 MPix resolution and astonishingly high shutter speeds that form a basis for premium performance class for all inspection and monitoring applications.
The new camera has been specifically designed by Procemex engineers to meet the demands for over 10 MPix web monitoring camera resolutions at 50 or 60 frames per second and for ultimate web inspection demands, such as 3D measurement for detecting elevated defects requiring 0.1 x 0.1 mm resolution.
This high resolution camera features totally new high quality Procemex ProClean Pinhole technology making it also suitable for monitoring positions in harsh wet end environment. The camera with the new Procemex ProClean pinhole technology features sharp image in entire imaging area – from corner to corner.
The shutter speeds reach in web monitoring applications 1/10.000 – 1/25.000 second eliminating effectively motion blur resulting crystal clear images.
- The fastest and most accurate smart camera
- Procemex ProClean Pinhole technology
- All applications can utilize the same camera
- True smart cameras with compact packaging
- Future proof 12 MPix CMOS based image sensor design – easy upgrade when needed
- PC-and TCP/IP network compatible
- Performance (resolution, frame rate, special application features) software selectable
- Processed data in FIFO RAM buffer
- FPGA, DSP and ARM –based real-time data processing
- Advanced defect detection and classification tools
- Strobe LED light controlling
- Standard C-mount fixed lens or zoom lens
- Power over Ethernet (PoE) for WIS applications
- Flicker and fade in-fade out -free images with 24 VAC ambient light power cycle
Key Features
|
Specification
- 12 Megapixels (4096×3072)
- 50/60 full frames per second
- Over 1000 windowed frames per second
- 700 MPix per second (700 MHz)
- Size (136 mm x 78 mm x 104 mm without lens)
